Plastic Injection Molding

Wintech specializes in high quality plastic injection molding.

Plastic Injection Molding

Most trusted plastic injection molding services.

What is Rapid Plastic Injection Molding

Plastic injection molding manufacturing process produces large quantities of plastic parts with thermoplastic resin. It is a common and important way to make plastic parts. The pellet resin is melted into a liquid form inside the screw at a certain temperature. Then compress the melting in mold cavity in high pressure, the plastic resin forms into solid shape in the mold cavity after a certain cooling time. Finally, the plastic is ejected by the ejection system. Depending on mold structure, part size, resin, part structure, different parts have different cycle time. At Wintech, we can provide high quality and affordable plastic injection molding services.

Rapid Plastic Injection Molding is suitable for 50 to 10,000 manufacturing demand.

plastic injection molding machine

Resins use for plastic injection molding

Depending on mechanical and cosmetic properties, there are hundreds of resins options.

The most common-used materials are ABS, PP, PC, PC+ABS, PA, P+GF, POM, PMMA, TPE, HDPE, PS. We also use some special material, such as: PEEK, PET, PPS+30%GF, and PPS.

Sabic, Dupont, BASF, Bayer and other famous reliable material provider has been our long-term partners. If you have customized resin demand, please send us physical properties detail, Wintech will do material sourcing for you.

How does Wintech match the color of plastic injection molding parts?

Normally, there are three ways to match the color: Pigment, master batch and pre-color. For rapid plastic injection molding, pigment is the best way to match the color, but if would like to go with options of master batch or pre-color, we can also make them for you.

plastic injection molding products

Pigment: Pigment is a kind of color powder used in color blending. We mix the color powder with the raw resin in ratio to achieve desired color in a few hours. This is fast and cost-effective way for color matching.

Master batch: This matching method is suitable for medium volume production and it requires more than 1 ton of resin. This costly method will take about 7 days to get matching color with better color consistency consistency.

Pre-color: In general, re-color matching is used in large volume production, usually requires more than 3 tons of resin. This is a rather expensive option and will take 8 to 15 days longer time to get matching color. Typically, this method is applicable to the optical products.

What surface finishing post processing services can Wintech offer for plastic injection molding parts?

At Wintech, we offer a range of surface finishing services:

Color Painting: Painting process is commonly used for cosmetic products’ post finishing.

Electroplating: Electroplating finishing changes the chemical, physical, and mechanical properties of the parts and improves corrosion resistance.

Printing(Pad printing and silk screen printing): These printing processes transfer color and image on a variety of surfaces.

Hot Stamping: It is a dry printing method for printing logo and symbols.

plastic injection molding

Painting

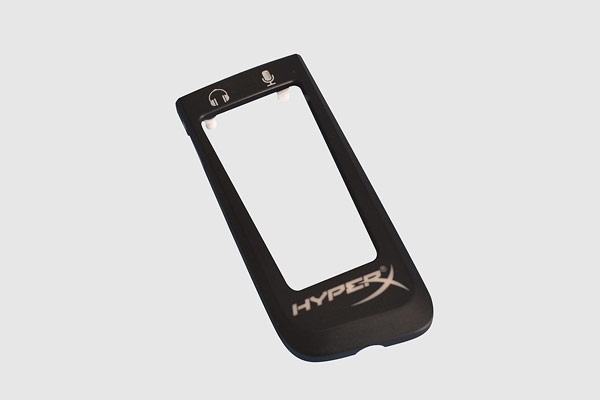

pad printing and silk screen printing part

Printing

electroplating part

Chrome-plating

pad printing

Two-color printing

w
